Ceiling installation kit for sling/circle
Remember, this is a ceiling mount for aerial acrobatics; you cannot swing on this ceiling mount like you would on a swing.
Set without certification. When installed correctly by a qualified person (mountain climber or construction worker with appropriate qualifications), it constitutes a proper anchor point and is completely safe for use.

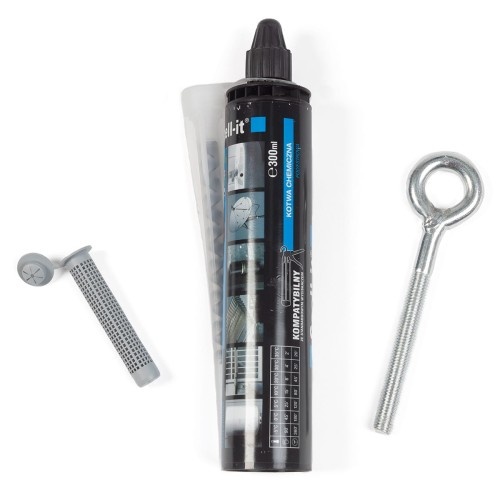

The set includes:
- scell-it pro vinyl ester resin anchor
- dosing tip - agitator
- M12 welded eye hook
- sleeve - tube for ceilings with gaps
- instructions
You will need
- a drill and a 14 mm or 16 mm drill bit
- a chemical anchor applicator
If you want to mount the hammock on two suspension points, choose the option with two hooks (one tube of anchor is enough for approx. 3-5 holes).
How to install a hook in the ceiling? - the following instructions are only a suggestion from the manufacturer. The person performing the installation bears full responsibility for the installation. Any doubts during installation should be consulted with a mountaineer or chemical anchor manufacturer.
2. Installation:
Before installation, make sure that you are installing in the correct ceiling (concrete, reinforced concrete, solid brick).
You cannot install the kit in a suspended ceiling!
1. Choose a place in the ceiling.
2. Drill a hole with a suitable drill bit - we recommend a 14 mm diameter drill bit for solid ceilings made of good quality concrete or reinforced concrete. For cracked or incomplete ceilings, consult a climber before installation. A 16 mm diameter drill bit may be required and a plastic sleeve may need to be placed in the center of the hole.
3. Thoroughly blow out and clean the hole - MULTIPLE TIMES!!!
(3a) - if necessary, place a plastic sleeve in the hole in the hollow ceiling (in this case, the hole should be drilled with a drill bit slightly larger than 14 mm - preferably 16 mm).
4. Attach the dispensing tip to the Scell-IT anchor.
5. Before injecting the resin, squeeze the first 10-15 cm of resin onto a newspaper. This is very important because the resin must first mix in the dispenser and only after 10-15 cm does this process take place.
6. Fill from 1/2 to 2/3 of the hole, from the bottom out, backing up one notch on the nozzle with each press.
7. Insert the threaded hook, turning slowly.
8. Wait approx. 45 minutes (or according to the instructions on the package) for the anchor to dry. IN THE MEANTIME, THE HOOK MUST BE SCREWED TO THE DESIRED DEPTH AND SHOULD BE PUSHED TO THE CEILING - IT CAN BE GLUED OR HELD IN PLACE IN ANY WAY.
9. After waiting for the chemical anchor to set, you can release the hook.
10. Wait 24 hours for the chemical anchor to harden properly.
NOTE:
The eye is made of steel, and a steel carabiner is usually attached to the eye. During exercise, friction between materials may occur and small filings may fall off.
THE BRACKET IS INTENDED FOR SELF-ASSEMBLY, FOR WHICH WE TAKE NO RESPONSIBILITY, HOWEVER, WE ARE ALWAYS HAPPY TO GIVE ADVICE AND HELP.
